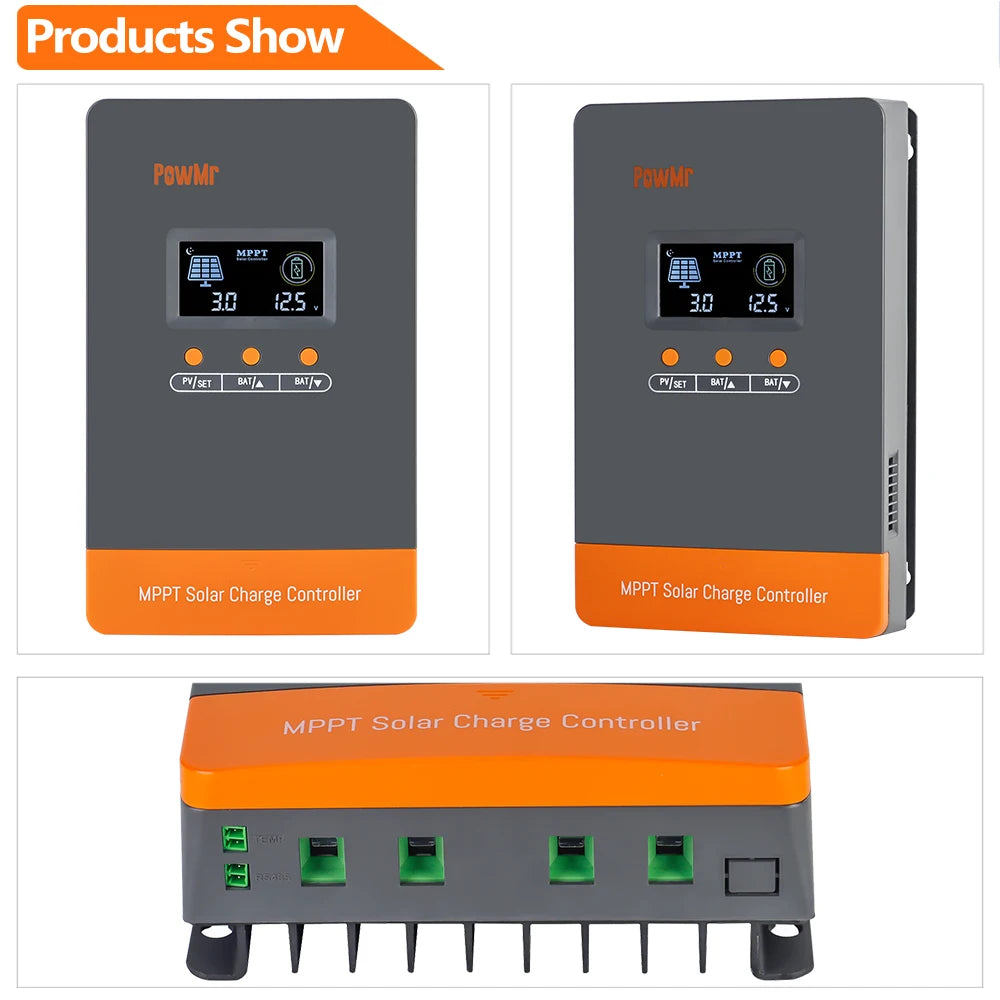

PowMr PRO MPPT Solar Charge Controller - 80A or 100A, 12V to 48V

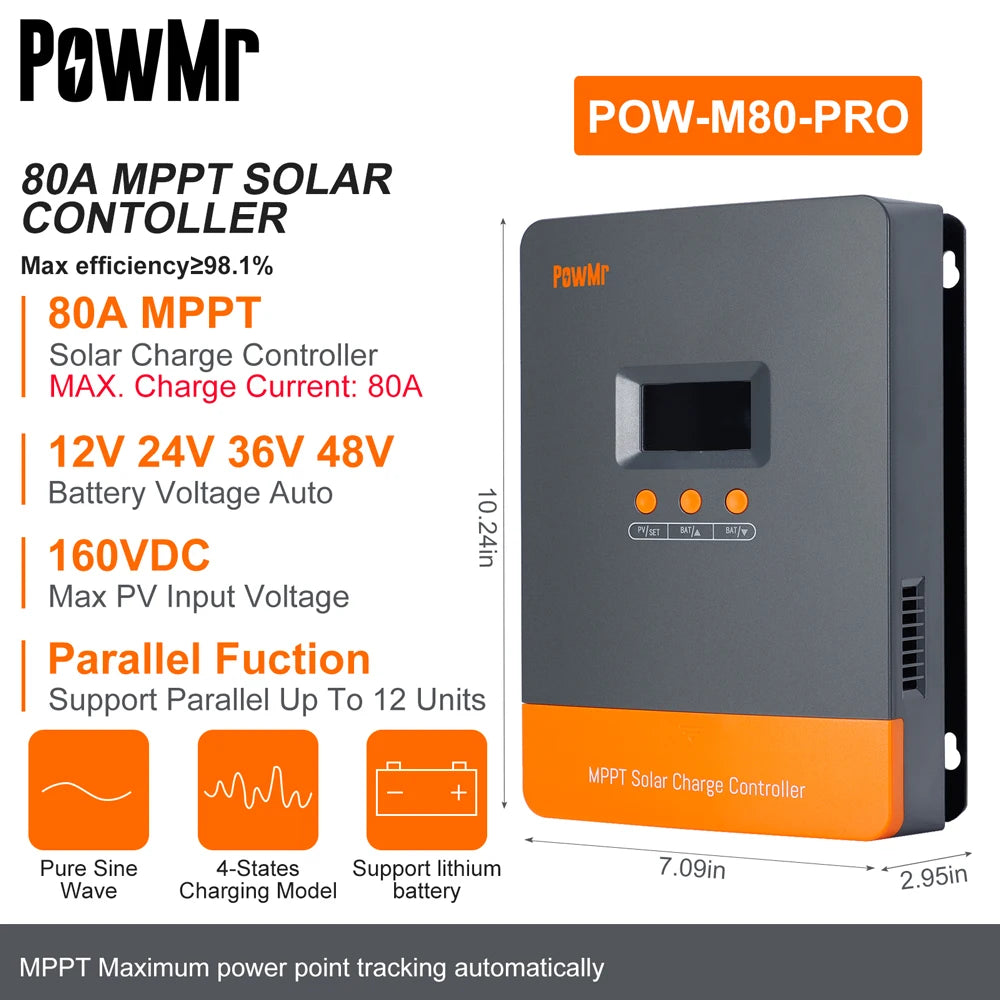

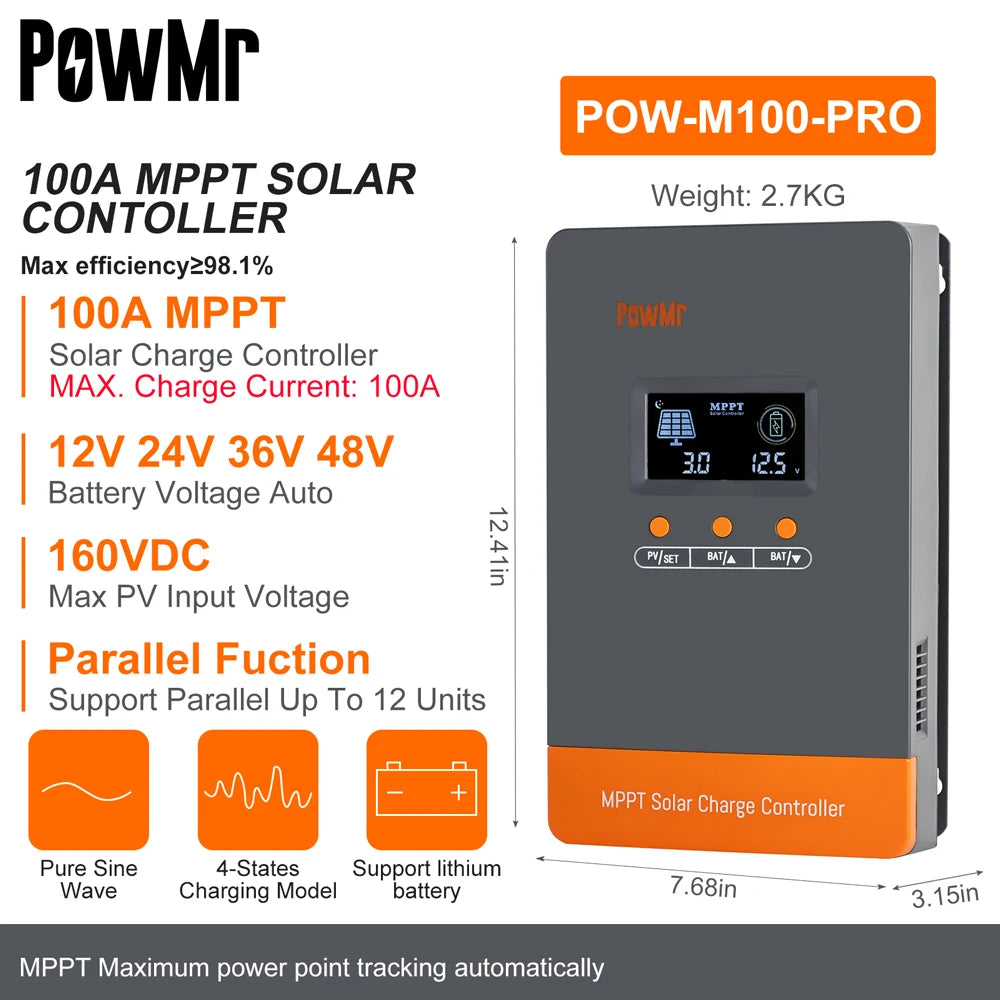

The PRO pair of PowMr's MPPT charge controllers: POW-M80-PRO at 80 A and POW-M100-PRO at 100 A. Both take an array of up to 160 V open circuit down to a 12 V, 24 V, 36 V or 48 V battery bank, and both carry a temperature-compensation probe port and RS485.

A charge controller puts solar energy into a battery bank. It does not produce AC. Match the amperage to your array on our What Size Do I Need? page before you order.

Specifications

What it does

• It is a real MPPT, and the box lets you verify it. The input takes up to 160 V open circuit and converts it down to bank voltage; a PWM controller can only tie the array to the battery and cannot do that at all. Then use the scale. PowMr states 4.4 lb net for the 80 A and 6.0 lb for the 100 A, and the parcel weighs 8.8 lb. A PWM board with an MPPT sticker on it weighs a pound or two, because it has neither the inductor nor the heat sink.
• One controller, four bank voltages. 12 V, 24 V, 36 V and 48 V, picked up automatically.
• Compensates for battery temperature. -3 mV per degree C per 2 V by default, with a probe port on the case for the reading.
• RS485 on board for monitoring and for the parallel link.

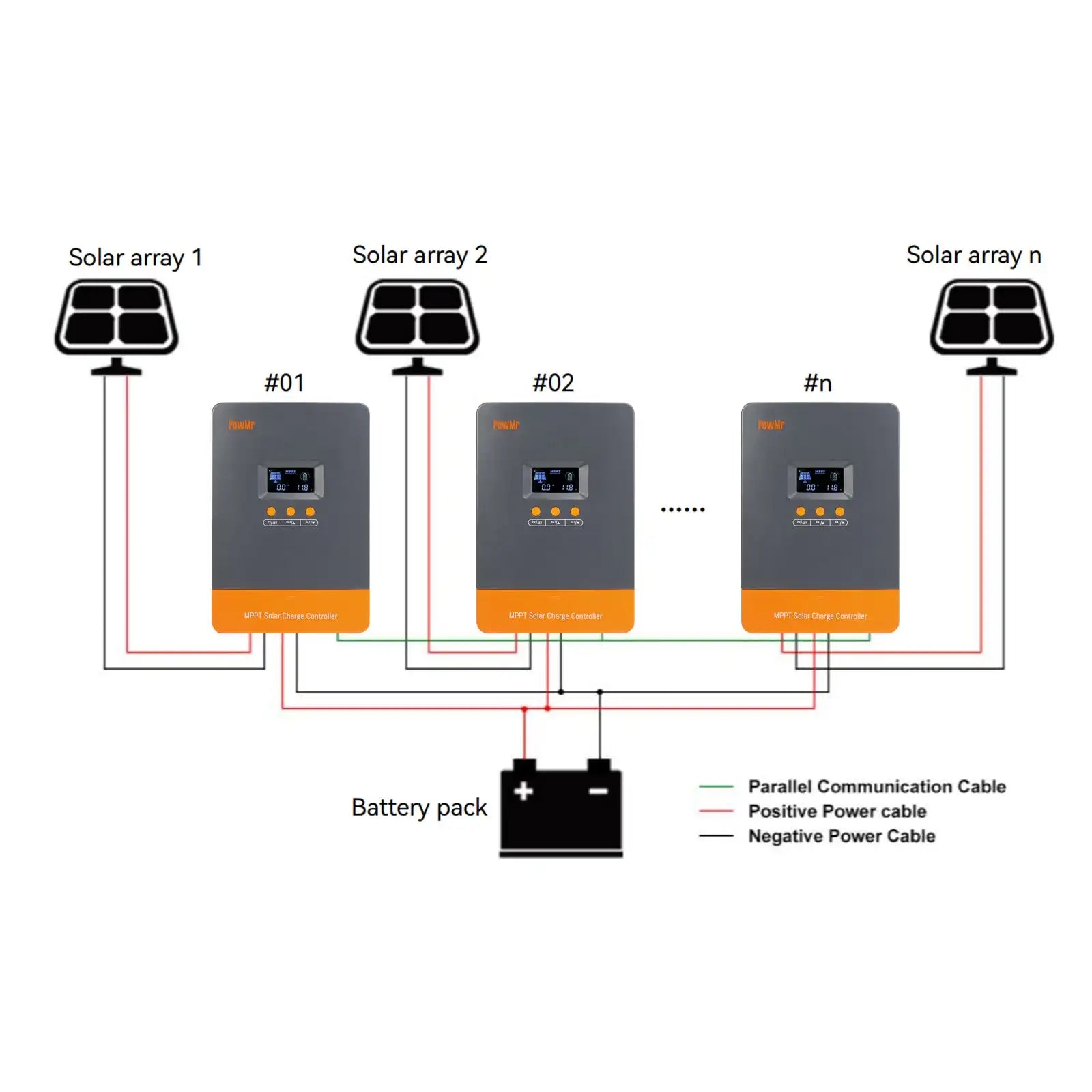

• Up to 12 units in parallel. Same bank, one array each, master and slaves defined from the master unit.

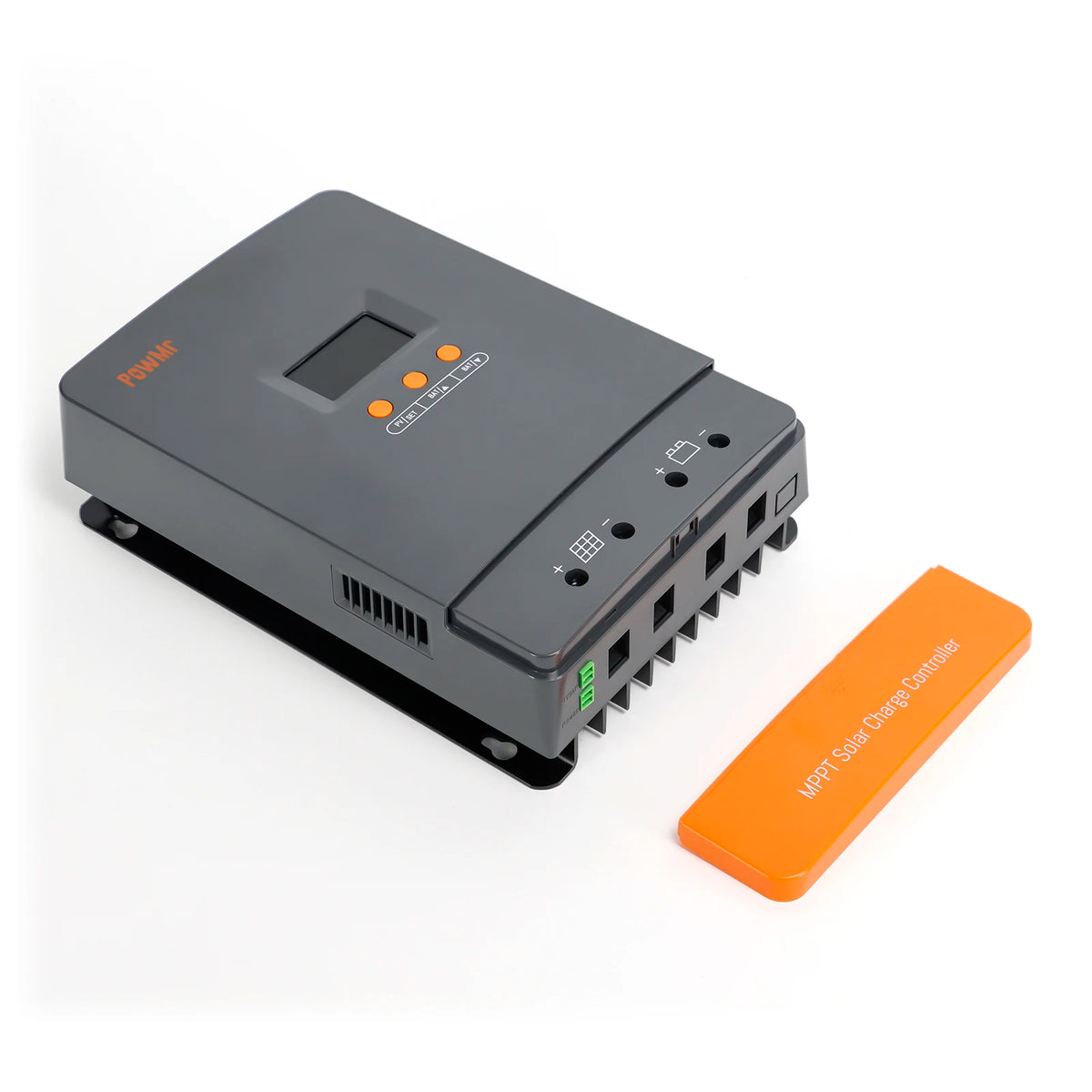

• Bolt terminals and a finned heat sink rather than the clamp connectors of the standard range.

What's in the box

• PowMr PRO MPPT charge controller in the amperage you selected, with its terminal cover
• PowMr does not publish a box-contents list for the PRO models and does not specify any cable gauge. We are not going to state one. Budget for your own PV cable, battery cable, breakers and temperature probe.

Before you order

• This is not an inverter. It charges a bank from solar. AC needs a separate inverter.
• Your bank must be 12 V, 24 V, 36 V or 48 V and must sit inside 9-60 V.
• Array open-circuit voltage must stay under 160 V on the coldest morning of the year. Panel Voc rises as temperature falls. Size the string for that, not for the 25 C datasheet figure.
• Breakers or fuses on both sides, array to controller and controller to bank. Neither is included.
• Check the max PV power line for your bank voltage. An 80 A PRO on a 12 V bank tops out at 960 W of array, the same unit on 48 V takes 3840 W. The sizing guide runs through the choice.
• IP32. Indoors, in a shed, or under cover. Not a rated outdoor enclosure.
